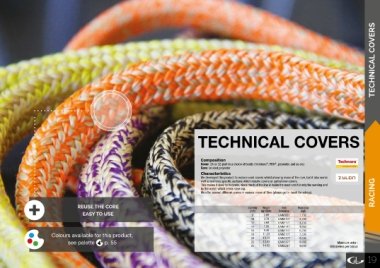

Page 19 - MARINE ROPES CATALOGUE - LANCELIN

TECHNICAL COVERS

TECHNICAL COVERS

Composition
®
Cover: 24 or 32-plait in a choice of braids (Technora , PBO , polyester, and so on.)
®
Core: braided polyester
Characteristics
We developed this product to replace used covers whilst allowing reuse of the core, but it also works
well to reinforce specific sections which require covers or partial over-covers.
This makes it ideal for halyards, since much of the line is inside the mast and it is only the working end
by the winch which needs covering.
We offer several different covers in various mixes of fibre (please get in touch for advice). RACING

REUSE THE CORE Diameter Weight Item Resistance
(mm) (kg/100m) Reference (kgf)
EASY TO USE 8 2.80 GAINE08T 1,750
10 3.70 GAINE10T 2,350
12 5.60 GAINE12T 3,750
14 7.50 GAINE14T 4,950
16 9.40 GAINE16T 6,280
Colours available for this product, 18 11.20 GAINE18T 7,500
20 13.10 GAINE20T 8,300
see palette 4 p. 55 22 13.80 GAINE22T 8,950 Minimum order :
24 14.90 GAINE24T 9,650 100 meters per colour.
