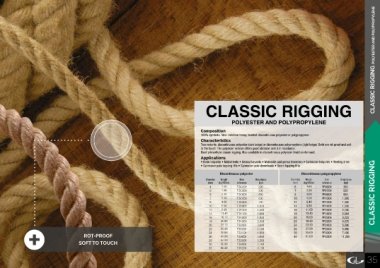

Page 35 - MARINE ROPES CATALOGUE - LANCELIN
P. 35
CLASSIC RIGGING CLASSIC RIGGING POLYESTER AND POLYPROPYLENE
POLYESTER AND POLYPROPYLENE
Composition
100% synthetic fibre imitation hemp; twisted discontinuous polyester or polypropylene
Characteristics
Two variants: discontinuous polyester (dark beige) or discontinuous polypropylene (light beige). Both are rot-proof and soft
to the touch. The polyester version offers good abrasion and U.V. resistance.
Used primarily in classic rigging. Also available in discontinuous polyester braid on demand.
Applications
• Main halyards • Mainsheets • Genoa halyards • Mainsails and genoa travellers • Spinnaker halyards • Reefing lines
• Spinnaker pole topping lifts • Spinnaker pole downhauls • Boom topping lifts
Discontinuous polyester Discontinuous polypropylene
Diameter Weight Item Resistance Diameter Weight Item Resistance
(mm) (kg/100m) reference (kgf) (mm) (kg/100m) reference (kgf)
4 1.30 TD04CH 220 6 1.60 PP06CH 350
5 1.90 TD05CH 300 7 2.20 PP07CH 530
6 2.40 TD06CH 410 8 3.00 PP08CH 650 CLASSIC RIGGING
7 3.40 TD07CH 550 10 4.50 PP10CH 1,000
8 4.60 TD08CH 700 12 6.40 PP12CH 1,350
10 6.50 TD10CH 1,050 14 8.50 PP14CH 1,550
12 8.60 TD12CH 1,400 16 11.00 PP16CH 2,100
14 11.40 TD14CH 1,600 18 13.40 PP18CH 2,694
16 16.10 TD16CH 1,950 20 16.00 PP20CH 3,223
18 20.80 TD18CH 2,350 22 18.50 PP22CH 4,270
20 23.10 TD20CH 3,040 24 23.30 PP24CH 5,290
22 29.30 TD22CH 4,100 26 27.90 PP26CH 5,980
24 38.60 TD24CH 4,850 30 35.00 PP30CH 7,100
ROT-PROOF 26 43.00 TD26CH 5,650 40 61.00 PP40CH 11,250
SOFT TO TOUCH 28 47.20 TD28CH 5,280
7,100
TD30CH
30
50.00
32 66.20 TD32CH 8,130
35
