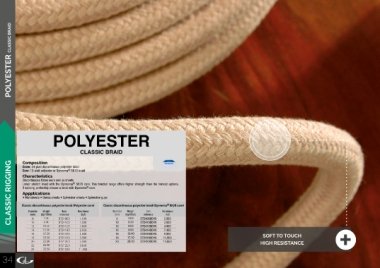

P. 34

POLYESTER CLASSIC BRAID






























                        POLYESTER


                                     CLASSIC BRAID
           Composition
      CLASSIC RIGGING  Classic discontinuous polyester braid (Polyester core)  Classic discontinuous polyester braid (Dyneema  SK78 core)
           Cover: 24-plait discontinuous polyester braid
                                 SK78 braid
           Core: 16-plait polyester or Dyneema ®
           Characteristics
           Discontinuous fibres work well as sheets.
                                   SK78 core. This braided range offers higher strength than the twisted options.
           Lower stretch braid with the Dyneema ®
           If splicing, preferably choose a braid with Dyneema ®
                                         core.
           Appplications
           • Mainsheets • Genoa sheets • Spinnaker sheets • Spinnaker guys
                                                                           ®
                    Weight
                            Item
                                                         Weight
                                                                  Item
              Diameter
              (mm)
                                                                          (kgf)
                           reference
                                                    (mm)
                                                                 reference
                                     (kgf)
                                                          4.00
                    4.00
                                    1,100
               8
                                                                          2,500
                                                     8
                                                          6.20
                    6.90
                                                                          3,500
                                                               DT2410DDYN
                                                    10
                           DT2410D
                                    1,500
               10
                                                               DT2412DDYN
                                                          8.00
                                                                          4,990
               12  (kg/100m)  DT2408D  Resistance   Diameter   (kg/100m)  DT2408DDYN  Resistance
                                                    12
                    10.50
                                    1,850
                           DT2412D
               14   12.00  DT2414D  2,950           14    9.90  DT2414DDYN  7,450
               16   17.50  DT2416D  4,500           16   13.40  DT2416DDYN  9,000                                    SOFT TO TOUCH
               18   21.50  DT2418D  5,300           18   17.50  DT2418DDYN  11,500
               20   25.90  DT2420D  7,000           20   20.10  DT2420DDYN  14,950                                  HIGH RESISTANCE
               22   28.90  DT2422D  8,650
               24   33.50  DT2424D  11,450
