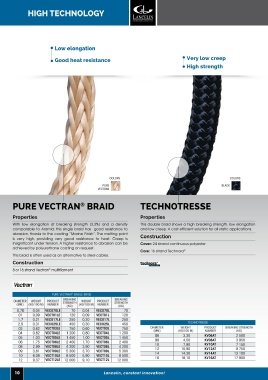

Page 10 - ROPES CATALOGUE - LANCELIN

HIGH TECHNOLOGY HIGH TECHNOLOGY

Case
Low elongation STUDY

Good heat resistance Very low creep Cover for non-textile core
High strength Protection and isolation

VECTRAN BRAIDS
®
Medical sector

Our ropes are used in the medical sector for
COLORS COLORS COLORS various applications, such as covers for tubes
to enhance the operation of instruments
PURE BLACK PALETTE 1
VECTRAN PAGE 43 or Vectran® solutions for physiotherapy
installations to name a few.
PURE VECTRAN BRAID TECHNOTRESSE COVER FOR ELECTRIC
®
Properties Properties WIRES AND STEEL CABLES

With low elongation at breaking strength (3,3%) and a density This double braid shows a high breaking strength, low elongation Properties
comparable to Aramid, this single braid has good resistance to and low creep. A cost efficient solution for all static applications. PRODUCT USED:
TECHNOTRESSE
abrasion, thanks to the coating “Marine Finish”. The melting point Construction This product can be made with a steel or copper core, or an
is very high, providing very good resistance to heat. Creep is electric cable as a core. We can cover any of your wires with a
insignificant under tension. A higher resistance to abrasion can be Cover: 24 strand continuous polyester single or double polyester cover. This brings the properties of textile
achieved by polyurethane coating on request. ropes to your cable.
Core: 16 strand Technora ®
This braid is often used as an alternative to steel cables. Construction
Construction Cover: 24 strand continuous polyester
®
8 or 16 strand Vectran multifilament Core: 12 or 16 strand continuous polyester

®
PURE VECTRAN SINGLE BRAID
BREAKING BREAKING COVER FOR ELECTRIC WIRES OR STEEL CABLES
DIAMETER WEIGHT PRODUCT WEIGHT PRODUCT
(MM) (KG/100 M) NUMBER STRENGTH (KG/100 M) NUMBER STRENGTH DIAMETER WEIGHT BREAKING STRENGTH
(KG) (KG) (MM) (KG/100 M) PRODUCT NUMBER (KG)
0,70 0,04 VEC070LE 70 0,04 VEC070L 70 06 2,90 GAINPOLCAB06 900
01 0,09 VECT01LE 120 0,09 VECT01L 120 08 4,40 GAINPOLCAB08 1 250
1,7 0,21 VEC017LE 250 0,20 VEC017L 250 10 6,70 GAINPOLCAB10 1 900 Telecommunication
2,5 0,31 VEC025LE 450 0,30 VEC025L 450 TECHNOTRESSE 12 10,80 GAINPOLCAB12 3 000 Our ropes are used in the telecommunication
WEIGHT
03 0,62 VECT03LE 750 0,60 VECT03L 750 DIAMETER (KG/100 M) PRODUCT BREAKING STRENGTH 14 13,40 GAINPOLCAB14 3 600
(KG)
NUMBER
(MM)
04 0,82 VECT04LE 1 200 0,80 VECT04L 1 200 06 3,30 KV06AT 2 500 16 18,50 GAINPOLCAB16 5 200 sector for static installations like antenna
05 1,03 VECT05LE 1 450 1,00 VECT05L 1 450 08 4,50 KV08AT 3 950 18 23,90 GAINPOLCAB18 6 400 towers and dynamic operation such as pulling
06 1,75 VECT06LE 2 400 1,70 VECT06L 2 400 10 7,90 KV10AT 7 150 20 30,00 GAINPOLCAB20 8 200 underground cables.
08 2,99 VECT08LE 4 200 2,90 VECT08L 4 200 12 10,90 KV12AT 9 750 22 32,20 GAINPOLCAB22 9 500
09 3,81 VECT09LE 5 300 3,70 VECT09L 5 300 24 41,30 GAINPOLCAB24 11 500
10 6,08 VECT10LE 8 500 5,90 VECT10L 8 500 14 14,30 KV14AT 13 100 26 48,70 GAINPOLCAB26 14 500
12 9,37 VECT12LE 12 000 9,10 VECT12L 12 000 16 18,10 KV16AT 17 900
