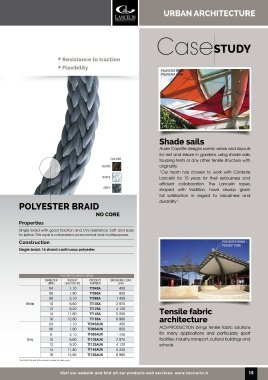

P. 15
URBAN ARCHITECTURE URBAN ARCHITECTURE
Case
High resistance STUDY
to abrasion
Low elongation Resistance to traction
Good resistance
to UVs Good dimensional stability Flexibility
POLYESTER BRAID
POLYESTER CORE
Shade sails
Aude Cayatte designs scenic areas and layouts
for rest and leisure in gardens, using shade sails,
COLORS COLORS COLORS touareg tents or any other tensile structure with
BLACK BLACK BLACK originality.
“Our team has chosen to work with Corderie
WHITE WHITE WHITE Lancelin for 15 years for their seriousness and
efficient collaboration. The Lancelin ropes,
GREY GREY GREY
shaped with tradition, have always given
full satisfaction in regard to robustness and
POLYESTER BRAID POLYESTER BRAID POLYESTER BRAID durability”.
POLYESTER CORE PENTEX CORE NO CORE
®
Properties Properties Properties
Soft rope with a high resistance to abrasion and UV. As a complementary rope to France Olympe , this rope features Single braid with good traction and UVs resistance. Soft and easy
®
a Low Stretch or Pentex core. Elongation is reduced by 50% to splice. This rope is a standard, economical and multipurpose.
®
Construction compared to a polyester core at equivalent breaking strength. It is
Cover: 16 strand continuous polyester used to bring stability for tensile structures. Construction POLYESTER BRAID /
PENTEX CORE
®
Core: continuous parallel polyester from 4 to 16 mm and braided This rope can be delivered cut to length or by the reel. Single braid: 16 strand continuous polyester.
continuous polyester from 18 mm. Can be spliced from 6 mm.
Construction
Cover: 16 strand continuous polyester
POLYESTER BRAID / POLYESTER CORE
®
DIAMETER WEIGHT PRODUCT BREAKING LOAD Core: parallel polyester Low Stretch or Pentex up to 5 mm and 16 POLYESTER SINGLE BRAID
WEIGHT
(MM) (KG/100M) NUMBER* (KG) strand braided Low Stretch or Pentex for 6 mm and up. DIAMETER (KG/100 M) PRODUCT BREAKING LOAD
®
(MM)
(KG)
NUMBER
02 0,20 TT02ML 70 04 1,10 TT04SA 450
No core 2,5 0,40 TT025M 110
06 1,90 TT06SA 850
03 0,70 TT03ML 220 POLYESTER DRAID / PENTEX CORE 08 3,10 TT08SA 1 450
®
04 1,20 TT04ML 340 DIAMETER WEIGHT PRODUCT BREAKING LOAD
(MM) (KG/100 M) NUMBER* (KG) White 10 6,60 TT10SA 2 975
05 1,80 TT05ML 390
03 0,90 LS03ML 220 12 9,20 TT12SA 4 120 Tensile fabric
06 2,40 TT06ML 550 Single braid 04 1,40 LS04ML 340 14 11,80 TT14SA 5 250
07 3,60 TT07ML 740 parallel core 05 1,90 LS05ML 440 16 15,80 TT16SA 6 980 architecture
Parallel core 08 4,80 TT08ML 1 100
06 2,80 LS06ML 610 04 1,10 TT04SAUN 450
10 6,80 TT10ML 1 800 06 1,90 TT06SAUN 850 ACS-PRODUCTION brings tensile fabric solutions
12 9,80 TT12ML 2 450 07 3,80 LS07ML 950 8 3,10 TT08SAUN 1 450 for many applications and particularly sport
14 14,10 TT14ML 3 400 08 5,40 LS08ML 1250
braided core 10 7,70 LS10ML 1900 Grey 10 6,60 TT10SAUN 2 975 facilities, industry, transport, cultural buildings and
16 18,20 TT16ML 4 200 12 9,20 TT12SAUN 4 120 schools
18 21,10 TT18ML 4 750 12 10,50 LS12ML 2450
Braided core 14 14,00 LS14ML 3400 14 11,80 TT14SAUN 5 250
20 25,70 TT20ML 5 550
16 19,60 LS16ML 4000 16 15,80 TT16SAUN 6 980
*Solid color: product number ends with UN instead of ML
Solid black: product number ends with NR instead of ML. *Add ML or UN at the end of the product number for black or grey color *Add NR at the end of the product number for black color.
14 Lancelin, high performance materials! Visit our website and find all our products and services: www.lancelin.fr 15
