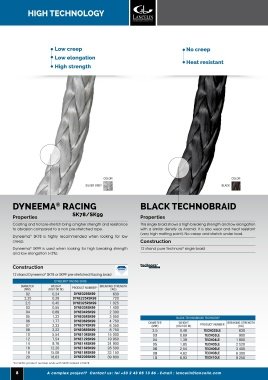

Page 8 - ROPES CATALOGUE - LANCELIN

HIGH TECHNOLOGY HIGH TECHNOLOGY

Case

Low creep No creep STUDY
Low elongation Non rotating
Heat resistant
High strength Ultra-compact braid

RAIL CABLE

Aerial cameras

XD Motion is a company specialising in aerial
footage. They have developed X-Fly. This system
allows multidimensional movement of a camera
during live TV broadcasts such as the Olympic
games, world cups, etc.
The products they are using meet stringent
performance and safety standards as required
COLOR COLOR COLOR for flights over the audience.
SILVER GREY BLACK BLACK

DYNEEMA RACING BLACK TECHNOBRAID AERIAL TRACK LINE
®
SK78/SK99
Properties Properties Properties

Coating and hot pre-stretch bring a higher strength and resistance This single braid shows a high breaking strength and low elongation This rope is recommended for camera applications such as
to abrasion compared to a non pre-stretched rope. with a similar density as Aramid. It is also wear and heat resistant “Air Track Cam”. Its anti-rotation property prevents the vibration
(very high melting point). No creep and stretch under load. effect experienced with conventional ropes and the rotation on
®
Dyneema SK78 is highly recommended when looking for low longer lengths. The very stiff braid in the cover provides very good
creep. Construction
resistance to abrasion. Black Technora can be used on request for
®
Dyneema SK99 is used when looking for high breaking strength 12 strand pure Technora single braid even greater resistance.
®
and low elongation (<3%).
Construction
Cover: 16 strand continuous polyester anti rotation braid
Construction
®
Core: 12 strand Dyneema SK78 or SK99 pre-stretched Racing braid
12 strand Dyneema SK78 or SK99 pre-stretched Racing braid
®
®
DYNEEMA RACING SK99
®
DIAMETER WEIGHT BREAKING STRENGTH DYNEEMA RACING
(MM) (KG/100 M) PRODUCT NUMBER* (KG)
02 0,24 DYNE02RSK99 630
2,25 0,28 DYNE225RSK99 720 Hot air balloon
2,5 0,45 DYNE025RSK99 1 025
03 0,55 DYNE03RSK99 1 400 This project is managed by the Physics University
04 0,89 DYNE04RSK99 2 300 of Barcelona in partnership with our Spanish
05 1,22 DYNE05RSK99 3 050 BLACK TECHNOBRAID TECHNORA ® distributor YangBela. They have developed an
06 1,77 DYNE06RSK99 4 750 DIAMETER WEIGHT BREAKING STRENGTH AERIAL TRACK LINE
07 2,33 DYNE07RSK99 6 350 (MM) (KG/100 M) PRODUCT NUMBER (KG) DIAMETER WEIGHT PRODUCT NUMBER BREAKING STRENGTH innovative system for wind analysis in the marine
08 3,22 DYNE08RSK99 8 750 2,5 0,46 TECN025LE 630 (MM) (KG/100 M) SK99 CORE (KG) environment, as an alternative to conventional
10 5,54 DYNE10RSK99 15 000 03 0,69 TECN03LE 900 06 2,31 CABPOL06RSK99 2 916 weather stations which are relatively expensive
12 7,54 DYNE12RSK99 19 950 04 1,39 TECN04LE 1 800 08 4,50 CABPOL08RSK99 5 568
14 9,76 DYNE14RSK99 24 900 05 1,85 TECN05LE 2 520 10 6,22 CABPOL10RSK99 9 545 to operate. The balloon, with a 3 meter diameter,
16 12,20 DYNE16RSK99 28 500 06 2,54 TECN06LE 3 400 12 10,15 CABPOL12RSK99 13 788 carries meteorological sensors and it can handle
18 15,08 DYNE18RSK99 33 150 08 4,62 TECN08LE 6 300 14 11,98 CABPOL14RSK99 18 030 150 Km/h winds at an altitude of 150 m thanks to
20 18,63 DYNE20RSK99 39 800 10 6,93 TECN10LE 9 250 16 14,26 CABPOL16RSK99 23 334 our 2.5 mm rope.
*For SK78: product number ends with SK99 instead of SK78 *For SK78: product number ends with SK99 instead of SK78

8 A complex project? Contact us: tel +33 2 43 05 13 86 - E-mail : lancelin@lancelin.com Visit our website and find all our products and services: www.lancelin.fr 9
