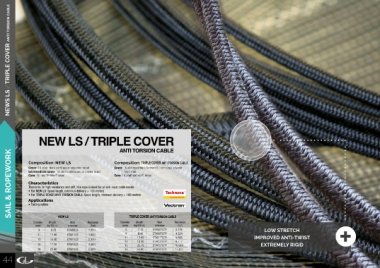

Page 44 - MARINE ROPES CATALOGUE - LANCELIN

NEWS LS / TRIPLE COVER ANTI TORSION CABLE

NEW LS / TRIPLE COVER
ANTI TORSION CABLE
SAIL & ROPEWORK
Composition: NEW LS Composition: TRIPLE COVER ANTI TORSION CABLE
Cover: 16-plait black continuous polyester braid Cover: 16-plait mixed black Technora® / continuous polyester
Intermediate cover: 16-plait continuous polyester braid triple braid
®
Core: 16-plait Pentex ® braid Core: 16-plait Vectran braid
Characteristics
Thanks to its high resistance and stiff, this rope is ideal for all anti-twist cable needs.
• For NEW LS: Spool length, minimun delivery > 100 meters
• For TRIPLE COVER ANTI TORSION CABLE: Spool length, minimun delivery > 100 meters
Applications
• Furling cables

NEW LS TRIPLE COVER ANTI TORSION CABLE
Diameter Weight Item Resistance Diameter Weight Item Resistance
(mm) (kg/100 m) reference (kgf) (mm) (kg/100 m) reference (kgf)
9 9.70 ETAI09LS 1,350 8 7.10 ETAI08TGTP 2,376 LOW STRETCH
11 13.80 ETAI11LS 1,850 9 8.40 ETAI09TGTP 4,224 IMPROVED ANTI-TWIST
13 16.00 ETAI13LS 2,350 11 13.00 ETAI11TGTP 5,808
18.00
ETAI13TGTP
8,712
13
15 17.70 ETAI15LS 4,500 15 25.70 ETAI15TGTP 10,560 EXTREMELY RIGID
18 22.90 ETAI18LS 5,500 18 36.OO ETAI18TGTP 17,424
44
